Produktdetails:
|
| Tintenart: | Sublimationstinte, Pigmenttinte | Farbe & Seite: | Multicolor |
|---|---|---|---|
| Verwendung: | Werbefeld in Indoor und Outdoor | Kompatibler Betriebssystem: | Windows 7 & Windows 10 |
| Sofware: | ONYX | Heizkraft: | 6kW |
| Automatische Note: | Automatisch | Stromspannung: | AC100-120V/AC220-240V |
| Geeigneter Stofftyp: | Gestrickte oder gewebte Baumwolle, Leinen, Seide, Wolle, chemische Faser, Nylon.oxford usw. | Medienverarbeitung: | Rollen zum Rollen + automatische Fütterung + automatisches Rollen |

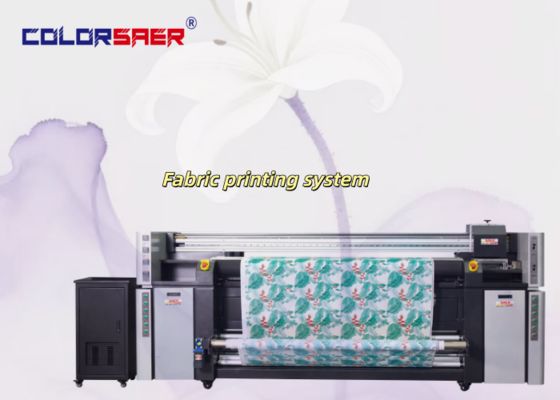

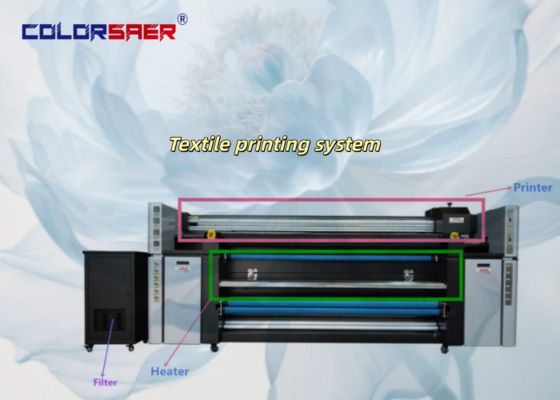

Product name: Factory Direct High Precision Textile Printer China Made Digital Fabric Printing System for Polyster & Cotton
Machine working speed :
|
Printing resolution and speed |
Resolution(dpi) speed |
| 360*1800dpi(3 pass) 65m2/h | |
| 720*1220dpi(4 pass) 45m2/h | |
| 720*1800dpi(6 pass) 35m2/h |
Machine Specification
| Product Parameter | |
| Model type | CSR2200 |
| Print head | 3 pieces Epson i3200 |
| Ink | Sublimation ink, pigment ink |
| Number of nozzles | (400 nozzles*8lines)*3head |
| Color | Dual CMYK |
| Print head high | 1.5mm/6mm (adjustable) |
| Ink supply mode | Continuous ink supply |
| Max materials width | 2200mm |
| Max printing width | 2000mm |
| Roll outer diameter | 3 inch |
| Maximum weight for roll material | 100kg |
| Interface | USB2.0 |
| RAM | 128M |
| Printer Power | AC100-120V/AC220-240V(adjustive) 50/60HZ |
| Power | Heater 3.5kw |
| Printer 100w | |
| Temperature | 30-32℃ |
| Humidity | 40-60%(Non-condensing) |
Advantages:
Main Features :
Print head:
Three Epson Print heads, faster speed, longer head life time. Feather printing function available, print heads correction and counterpoint are more easy. Intelligent print head cleaning service, supply safe and convenient print head cleaning and protection function.
Guid Rail:
Using HIWIN mute guide rail. Germany IGUS silent drag chain make your printing environment more quit ．
X axis and Yaxis:
X axis and Y axis are using AC servo motors.
Application industry:
