Produktdetails:
|
| Verwendung: | Werbefeld in Indoor und Outdoor | Kompatibler Betriebssystem: | Windows 7 & Windows 10 |
|---|---|---|---|
| Sofware: | ONYX | Heizkraft: | 6kW |
| Automatische Note: | Automatisch | Stromspannung: | AC100-120V/AC220-240V |
| Geeigneter Stofftyp: | Polyester u. Baumwolle | Medienverarbeitung: | Rollen zum Rollen + automatische Fütterung + automatisches Rollen |
| Tintentyp: | Sublimationstinte, Pigmenttinte | Farbe & Seite: | Multicolor |

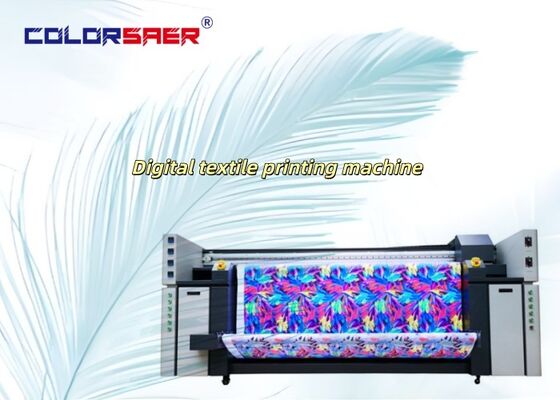

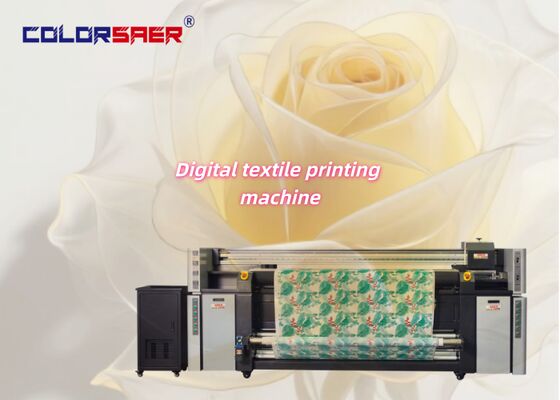

Product name:Wholesale SAER High Quality 4 & 8 colors high quality Flag printing machine Digital textile printing system
Machine Specifications:
| Product Parameter | |
| Model type | CSR2200 |
| Print head | 3 pieces Epson i3200 |
| Ink | Sublimation ink, pigment ink |
| Number of nozzles | (400 nozzles*8lines)*3head |
| Color | Dual CMYK |
| Print head high | 1.5mm/6mm (adjustable) |
| Ink supply mode | Continuous ink supply |
| Max materials width | 2200mm |
| Max printing width | 2000mm |
| Roll outer diameter | 3 inch |
| Maximum weight for roll material | 100kg |
| Interface | USB2.0 |
| RAM | 128M |
| Printer Power | AC100-120V/AC220-240V(adjustive) 50/60HZ |
| Power | Heater 3.5kw |
| Printer 100w | |
| Temperature | 30-32℃ |
| Humidity | 40-60%(Non-condensing) |
Machine working speed:
|
Printing resolution and speed |
Resolution(dpi) speed |
| 360*1800dpi(3 pass) 65m2/h | |
| 720*1220dpi(4 pass) 45m2/h | |
| 720*1800dpi(6 pass) 35m2/h |
Application industry:
Main Features :
Print head:
Three Epson Print heads, faster speed, longer head life time. Feather printing function available, print heads correction and counterpoint are more easy. Intelligent print head cleaning service, supply safe and convenient print head cleaning and protection function.
X axis and Yaxis:
X axis and Y axis are using AC servo motors.
Guid Rail:
Using HIWIN mute guide rail. Germany IGUS silent drag chain make your printing environment more quit ．
Advantages:
