Produktdetails:
|
| Geeigneter Stofftyp: | Gestrickte oder gewebte Baumwolle, Leinen, Seide, Wolle, chemische Faser, Nylon.oxford usw. | Medienverarbeitung: | Rollen zum Rollen + automatische Fütterung + automatisches Rollen |
|---|---|---|---|
| Tintenart: | Sublimationstinte, Pigmenttinte | Farbe & Seite: | Multicolor |
| Verwendung: | Werbefeld in Indoor und Outdoor | Kompatibler Betriebssystem: | Windows 7 & Windows 10 |
| Sofware: | ONYX | Heizkraft: | 6kW |
| Automatische Note: | Automatisch | Stromspannung: | AC100-120V/AC220-240V |
| Hervorheben: | Large format digital printing plotter,Automatic inkjet printer 1220dpi,4-head textile printing machine |
||

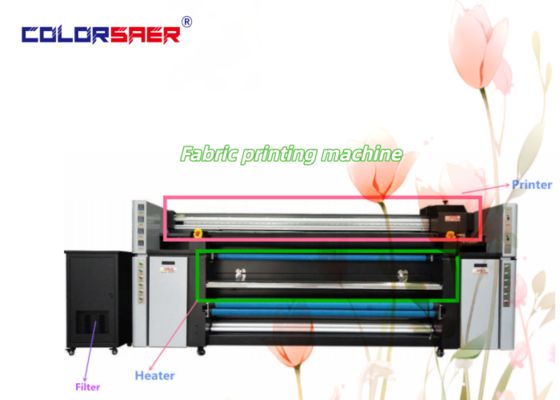

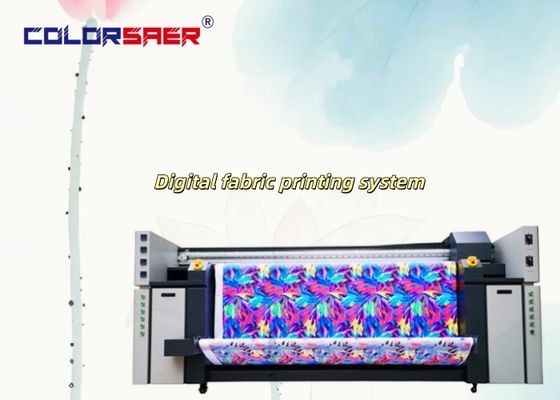

Product name: Large format Automatic Digital Printing Plotter Inkjet Printer With 1220dpi 4 Heads All-in-one Printing system
Machine Specifications:
| Product Parameter | |
| Model type | CSR2200 |
| Print head | 3 pieces Epson i3200 |
| Ink | Sublimation ink, pigment ink |
| Number of nozzles | (400 nozzles*8lines)*3head |
| Color | Dual CMYK |
| Print head high | 1.5mm/6mm (adjustable) |
| Ink supply mode | Continuous ink supply |
| Max materials width | 2200mm |
| Max printing width | 2000mm |
| Roll outer diameter | 3 inch |
| Maximum weight for roll material | 100kg |
| Interface | USB2.0 |
| RAM | 128M |
| Printer Power | AC100-120V/AC220-240V(adjustive) 50/60HZ |
| Power | Heater 3.5kw |
| Printer 100w | |
| Temperature | 30-32℃ |
| Humidity | 40-60%(Non-condensing) |
|
Printing resolution and speed |
Resolution(dpi) speed |
| 360*1800dpi(3 pass) 65m2/h | |
| 720*1220dpi(4 pass) 45m2/h | |
| 720*1800dpi(6 pass) 35m2/h | |
Advantages:
1. Equipped with the feeding motor Positive and Negative transfer function, taking and feeding constant tension transmission system.
2. The unique print platform design to make the cloth always smooth in the process of printing.
3. Unique filtering lampblack system, make the picture very clean.
4. Taking up and feeding roller are inflatable roller.
5. Taking up and feeding fabric are smoothly
Main Features :
Guid Rail:
Using HIWIN mute guide rail. Germany IGUS silent drag chain make your printing environment more quit ．
Print head:
Three Epson Print heads, faster speed, longer head life time. Feather printing function available, print heads correction and counterpoint are more easy. Intelligent print head cleaning service, supply safe and convenient print head cleaning and protection function.
X axis and Yaxis:
X axis and Y axis are using AC servo motors.
Application industry:
1), personality print: such as shops, cell phone decoration shop, personality gift shop.
2), advertising industry: indoor and outdoor advertising.
3), products proofing: all kinds of traditional printing sample production.
4), studio: digital image production.
5), clothing industry: sample print or character pattern of color printing.
